Absen FL2.5 Plus V2 (2.5mm) (Flex)

Description

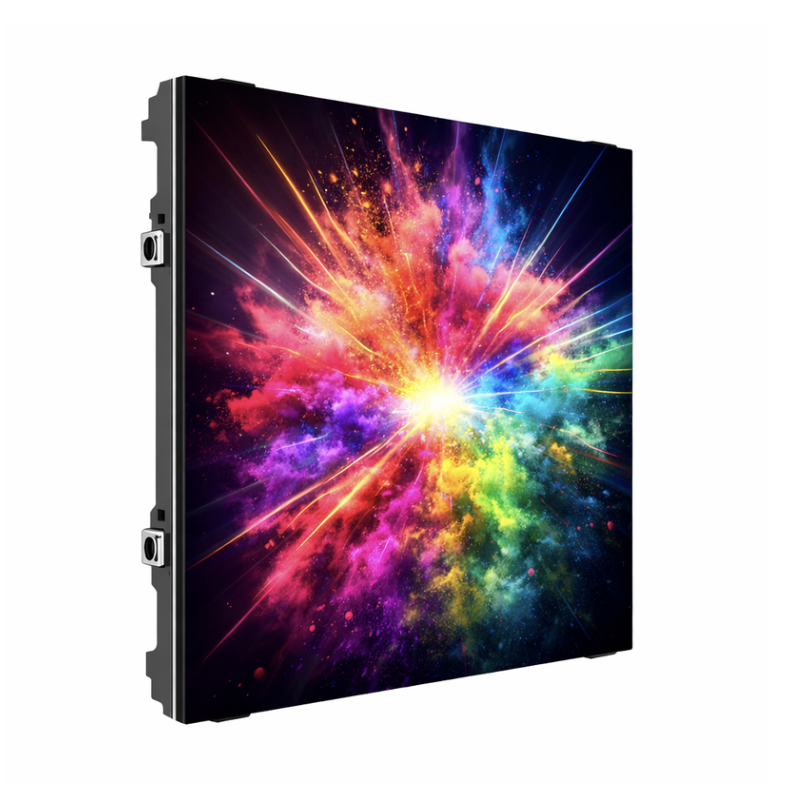

Absen PL2.5 Plus V2 LED Display

A 2.5 mm indoor LED display system from Absen, combining high contrast, precision alignment, and advanced flexibility for creative live events and professional installations.

Visual Performance

The 2.5 mm pixel pitch delivers sharp, detailed imagery with HDR support and up to 16-bit grayscale for rich colour depth and fine detail. Brightness up to 1000 nits and a refresh rate exceeding 3840 Hz ensure smooth, flicker-free visuals for camera and livestream applications.

Technology

UltraBlack Technology minimises glare and enhances contrast using non-reflection LEDs and a matte, super-black mask. Premium-grade 1515 SMD LEDs and 18-bit+ image processing deliver consistent colour, deep blacks, and uniform pixel performance across flat, curved, and corner displays.

Design & Durability

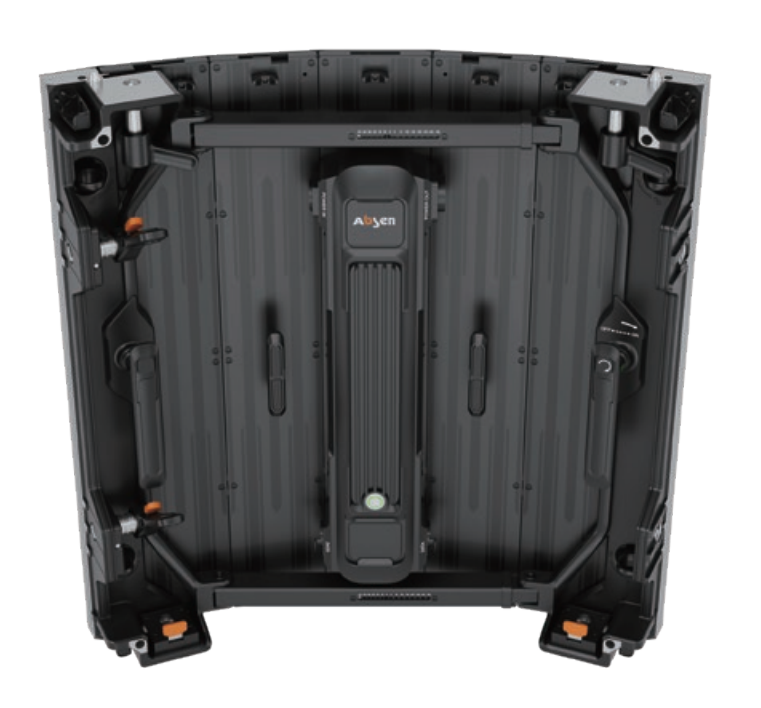

Precision-engineered panels support seamless flat, corner, cube, and flexible configurations. The system integrates PL2.5 Plus V2 panels, dedicated cube corner units, and FL2.5 flexible panels into one continuous LED canvas. FL2.5 panels offer 15 adjustable angle settings from -45° to +45°, enabling concave, convex, cylindrical, and 90° arc designs. Dual reinforcements allow FL panels to perform equally well in flat wall applications.

Installation & Maintenance

Auto-lock and auto-eject systems enable fast, tool-free installation. FL2.5 panels feature simple one-hand angle adjustment via an intuitive release mechanism, allowing quick reshaping on site. Standard, corner, and flexible panels can be easily combined for efficient reconfiguration.

Applications

Live events and touring. Exhibitions, conferences, and award ceremonies. Broadcast, livestream, and corporate environments.
