| Pixel Pitch | 2.5 mm |
| Brightness | 1200 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 200 x 200 px |
| Panel Dimensions (W x H x D) | 500 x 500 x 78 mm |
| Viewing Angle (H / V) | 140 / 140 |
| Panel Weight | 7.8 kg |
| IP Rating (Front / Rear) | 40 / 21 |
| Power Consumption (Max / Avg) | 640 / 215 m² |
Absen PL2.5 Plus V2 (2.5mm)
Description

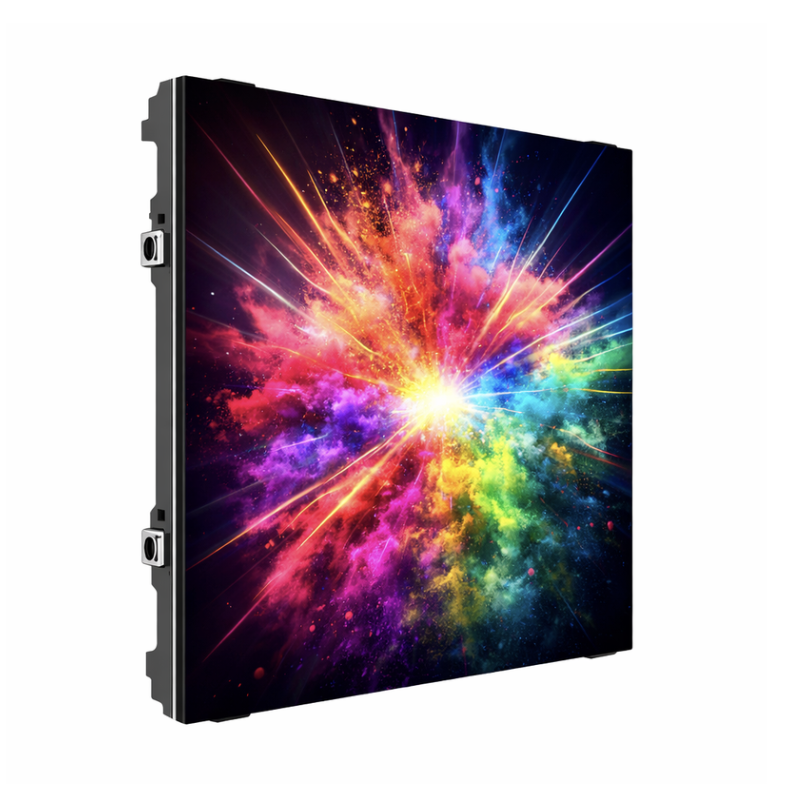

Absen PL2.5 Plus V2 LED Display
A 2.5 mm indoor LED display from Absen, delivering superior contrast, high-precision alignment, and reliable performance for live events, broadcast, and professional installations.
Visual Performance
The 2.5 mm pixel pitch delivers detailed, high-resolution imagery with excellent clarity. HDR support enhances realism and colour depth, while up to 16-bit grayscale enables the display of fine detail and smooth tonal transitions. A refresh rate exceeding 3840 Hz ensures flicker-free, scanline-free visuals for camera and livestream applications.
Technology
UltraBlack Technology uses small-sized, non-reflection LEDs combined with a matte, super-black mask to significantly improve contrast and reduce glare. Premium-grade 1515 SMD LEDs deliver extreme blacks, vibrant colour reproduction, and exceptional pixel uniformity. 18-bit+ image processing ensures stable, accurate image performance.
Design & Durability
High-precision panel alignment creates seamless visual continuity across large displays. The integrated curve locking system supports both convex (-7.5°) and concave (+10°) configurations, allowing flexible and creative screen designs.
Installation & Maintenance

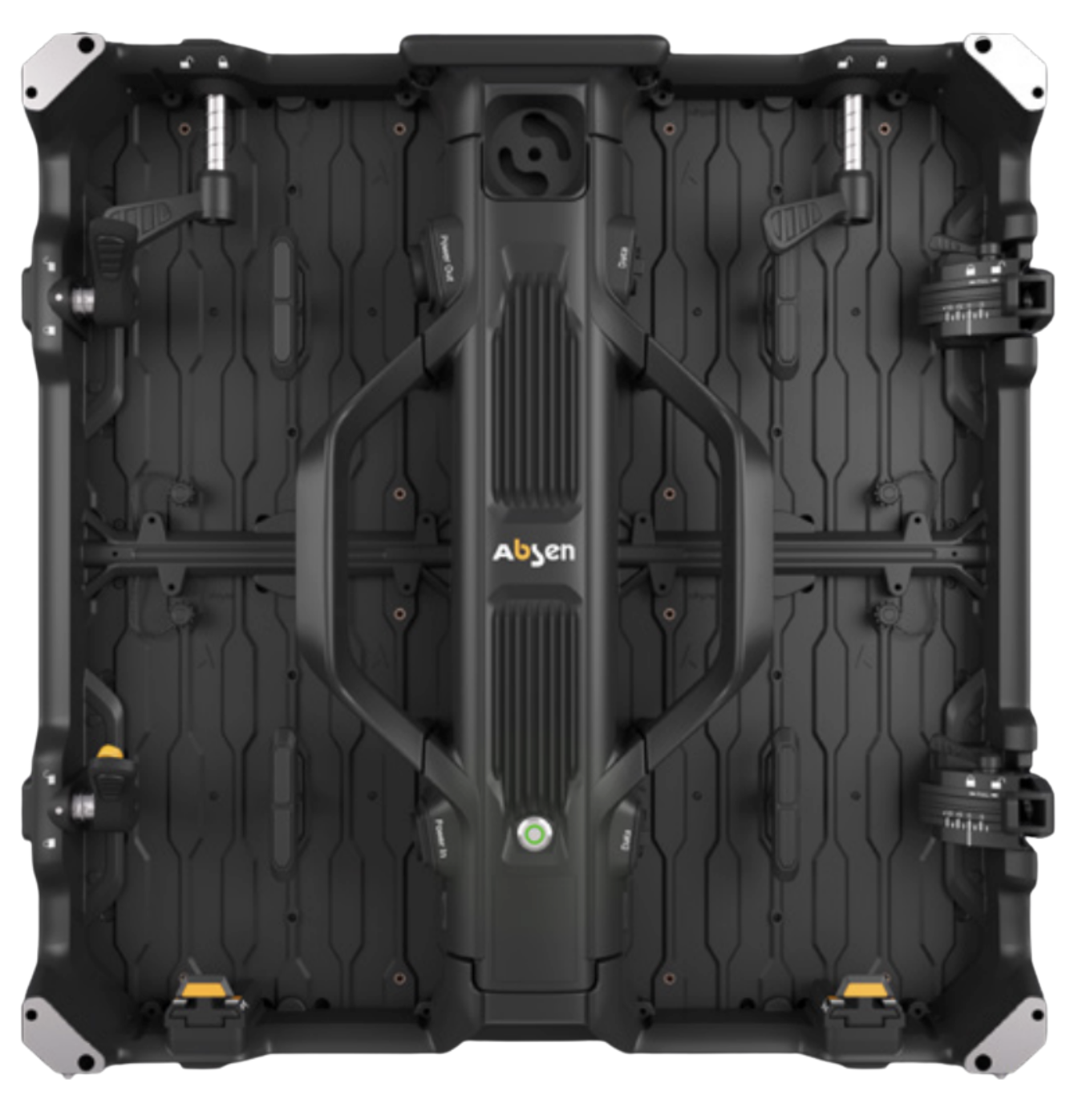

Integrated auto-lock and auto-eject systems enable fast, tool-free installation and removal at the push of a button, supporting efficient setup and breakdown in rental and touring environments.
Applications
Live events and touring. Broadcast studios and livestream environments. Corporate events, exhibitions, and fixed indoor installations.
