| Pixel Pitch | 2.97 mm |
| Brightness | 3000 nits |
| Refresh Rate | 7680 Hz |
| Pixel Matrix Per Panel | 168 x 168 px |
| Panel Dimensions (W x H x D) | 500 x 500 x 78 mm |
| Viewing Angle (H / V) | 160 / 160 |
| Panel Weight | 8 kg |
| IP Rating (Front / Rear) | 65 / 54 |
| Power Consumption (Max / Avg) | 610 / 204 m² |
Absen PL2.9 Pro V2 (2.9mm)
Description

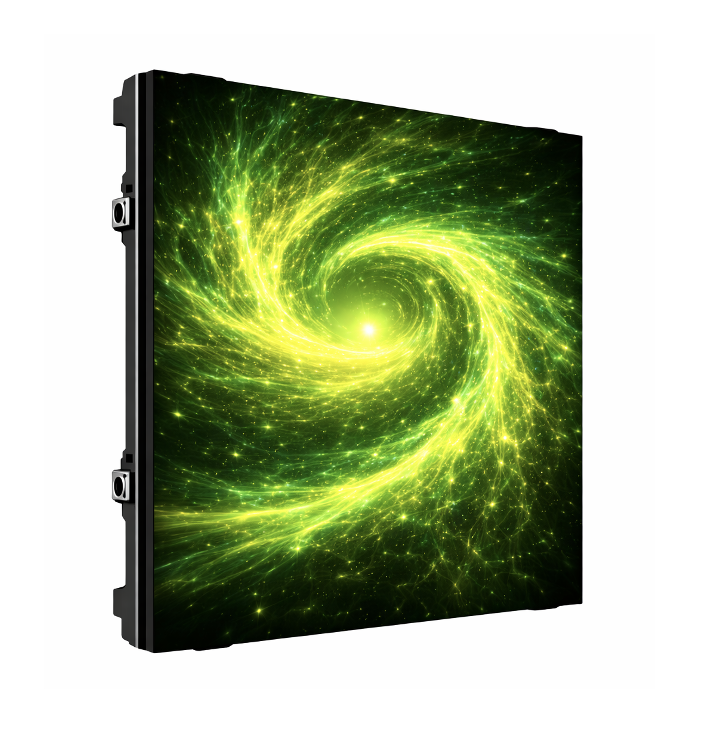

Absen PL2.9 Pro V2 LED Display
The Absen PL2.9 Pro V2 is a high-resolution indoor and outdoor rental LED panel designed for live events and demanding environments. Its 500 × 500 mm format delivers powerful visuals with extreme brightness and contrast for both indoor and outdoor applications.
Visual Performance
With a 2.9 mm pixel pitch, the PL2.9 Pro V2 delivers high-resolution imagery suitable for close-to-mid viewing distances. Ultra-high brightness of up to 3,000 nits and a 5,000:1 contrast ratio ensure excellent visibility in all lighting conditions.
Technology
Absen Common Cathode technology combined with black-faced SMD LEDs enables precise power control, resulting in up to 20% lower heat generation and up to 20% higher brightness*. This delivers stable, efficient high-brightness and high-contrast performance.
Design & Durability
The PL2.9 Pro V2 supports flat and curved LED configurations using 500 × 500 mm panels. An integrated curve locking system allows convex (-7.5°) and concave (+10°) builds. With an IP65/54 rating, the panel is engineered for reliable indoor and outdoor rental use.
Installation & Maintenance
Designed for live event environments, the PL2.9 Pro V2 allows fast installation using integrated locking and curving systems. Its robust construction supports frequent handling while maintaining consistent performance.
Applications
Live events, indoor and outdoor rentals, concerts, festivals, broadcast productions, and creative curved LED installations.
