| Pixel Pitch | 2.97 mm |
| Brightness | 3000 nits |
| Refresh Rate | 7680 Hz |
| Pixel Matrix Per Panel | 168 x 168 px |
| Panel Dimensions (W x H x D) | 500 x 500 x 78 mm |
| Viewing Angle (H / V) | 160 / 160 |
| Panel Weight | 8 kg |
| IP Rating (Front / Rear) | 65 / 54 |
| Power Consumption (Max / Avg) | 610 / 204 m² |
Absen PL2.9 Pro V2 (2.9mm) (Cube)
Description

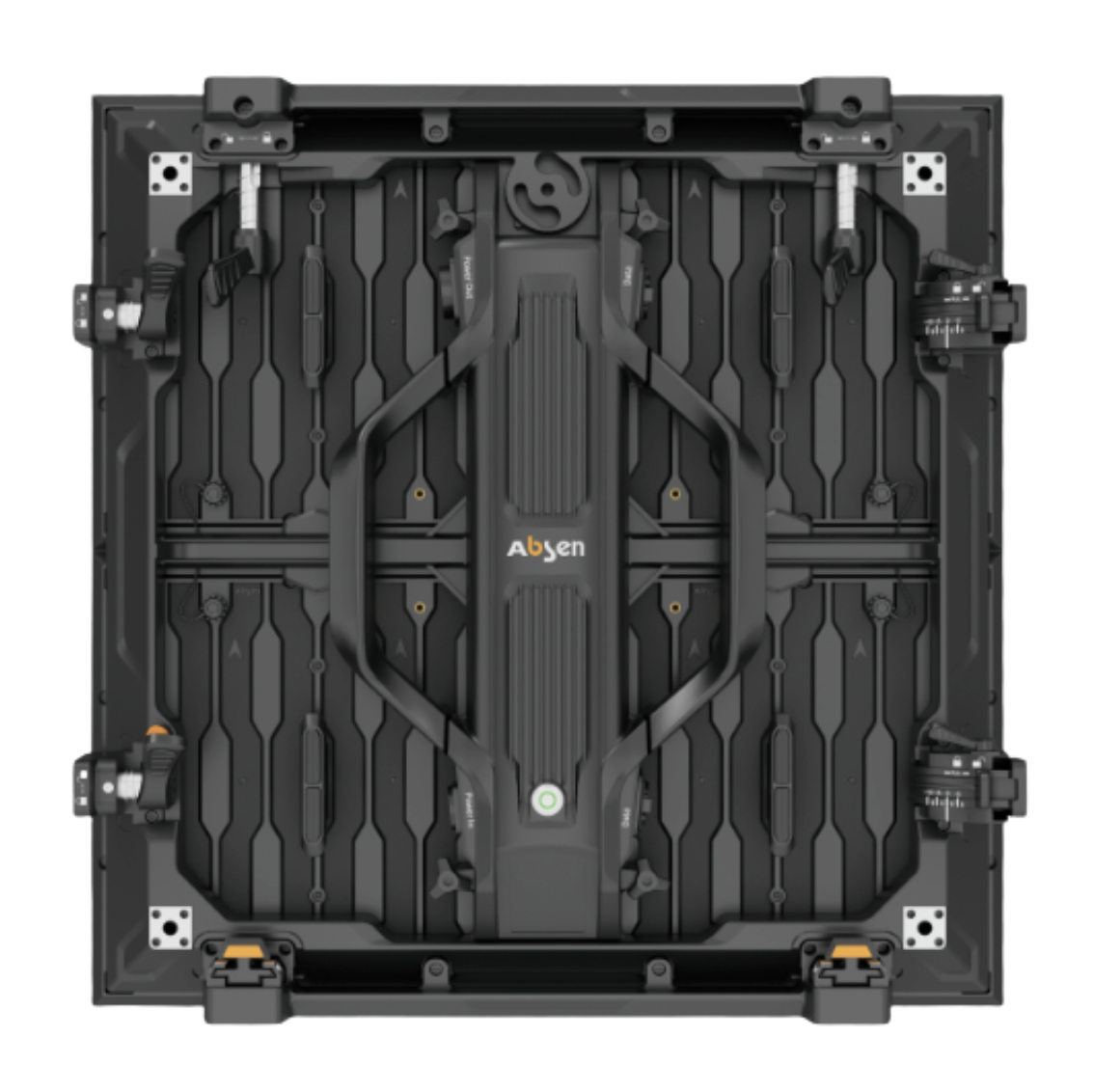

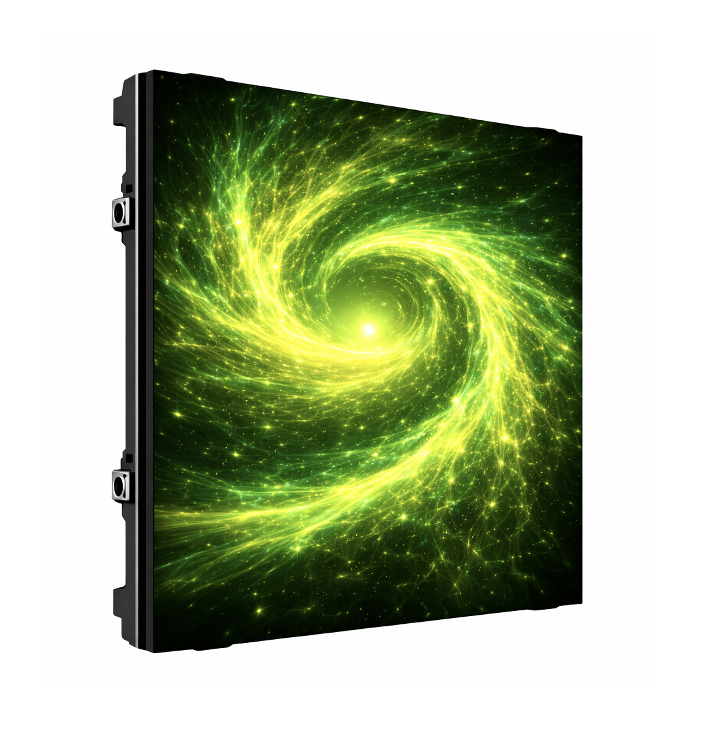

Absen PL2.9 Pro V2 LED Display
The Absen PL2.9 Pro V2 Cube is a high-resolution indoor and outdoor rental LED panel designed for live events and creative outdoor applications. Its 500 × 500 mm cube panels enable seamless edge and corner configurations while delivering extreme brightness and contrast.
Visual Performance
With a 2.9 mm pixel pitch, the PL2.9 Pro V2 Cube delivers high-resolution imagery suitable for close-to-mid viewing distances. Ultra-high brightness of up to 3,000 nits and a 5,000:1 contrast ratio ensure outstanding visibility, even in outdoor environments.
Technology
Absen Common Cathode technology combined with black-faced SMD LEDs provides precise power control, delivering up to 20% lower heat generation and up to 20% higher brightness*. This ensures stable, efficient performance at ultra-high brightness levels.
Design & Durability
Designed for seamless edge and cube configurations, the PL2.9 Pro V2 Cube panels allow striking 3D and corner LED builds. An integrated curve locking system supports convex (-7.5°) and concave (+10°) configurations. With an IP65/54 rating, the panels are built for reliable indoor and outdoor rental use.
Installation & Maintenance
Engineered for live event environments, the PL2.9 Pro V2 Cube panels allow fast installation using integrated locking and curving systems. Their robust construction supports frequent handling while maintaining consistent performance.
Applications
Live events, indoor and outdoor rentals, concerts, festivals, brand activations, broadcast productions, and creative cube or 3D LED installations.
