| Pixel Pitch | 3.9 mm |
| Brightness | 5000 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 128 x 128 px |
| Panel Dimensions (W x H x D) | 500 x 500 x 78 mm |
| Viewing Angle (H / V) | 140 / 120 |
| Panel Weight | 7.8 kg |
| IP Rating (Front / Rear) | 65 / 54 |
| Power Consumption (Max / Avg) | 720 / 240 m² |
Absen PL3.9 Pro V2 (3.9mm) (Cube)
Description

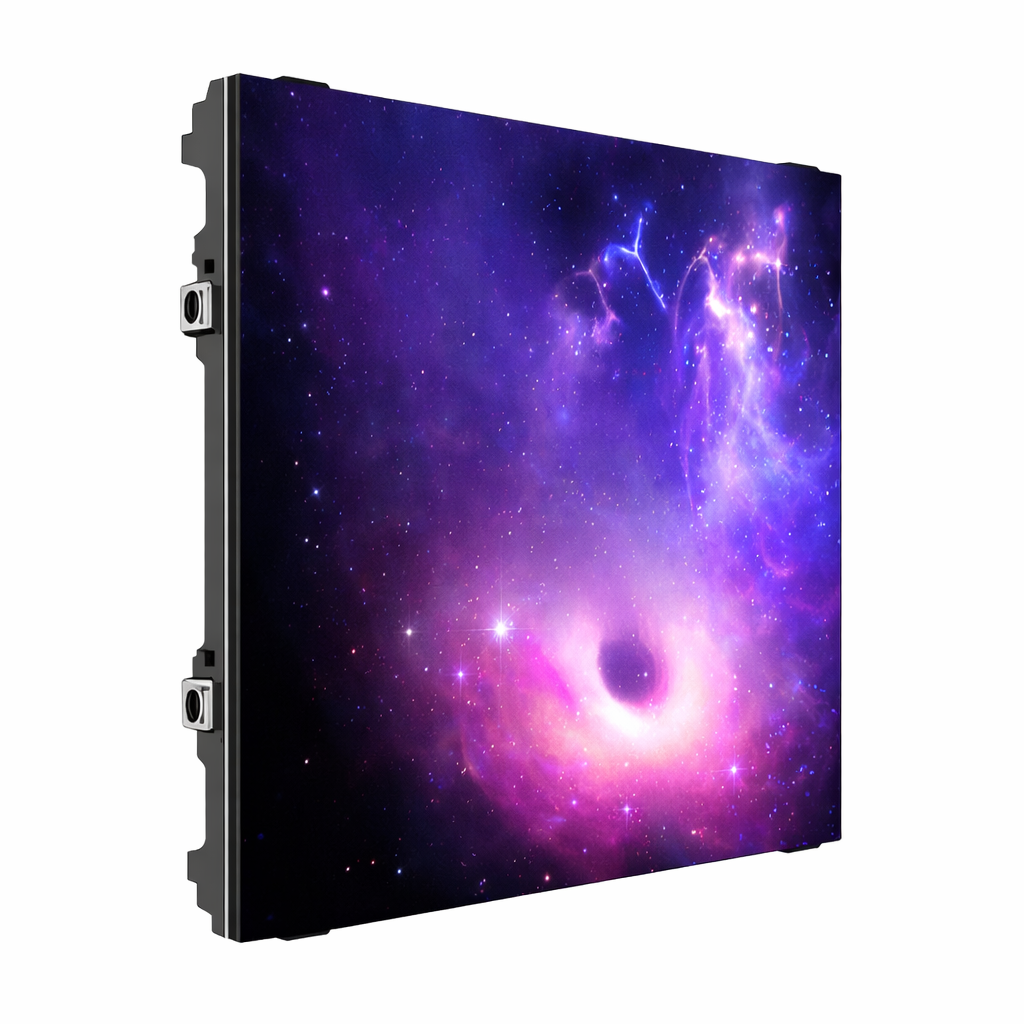

Absen PL3.9 Pro V2 LED Display
The Absen PL3.9 Pro V2 Cube is a high-resolution indoor and outdoor rental LED panel designed for live events and creative outdoor applications. Using 500 × 500 mm cube panels, it enables seamless edge and corner configurations while delivering extreme brightness and contrast.
Visual Performance
With a 3.9 mm pixel pitch, the PL3.9 Pro V2 Cube delivers high-resolution imagery suitable for mid-to-long viewing distances. Ultra-high brightness of up to 4,500 nits and an 5000:1 contrast ratio ensure outstanding visibility and image clarity, even in outdoor and high-ambient-light conditions.
Technology
Absen Common Cathode technology combined with black-faced SMD LEDs provides precise power control, delivering up to 20% lower heat generation and up to 20% higher brightness*. This ensures stable, efficient performance at ultra-high brightness levels.
Design & Durability

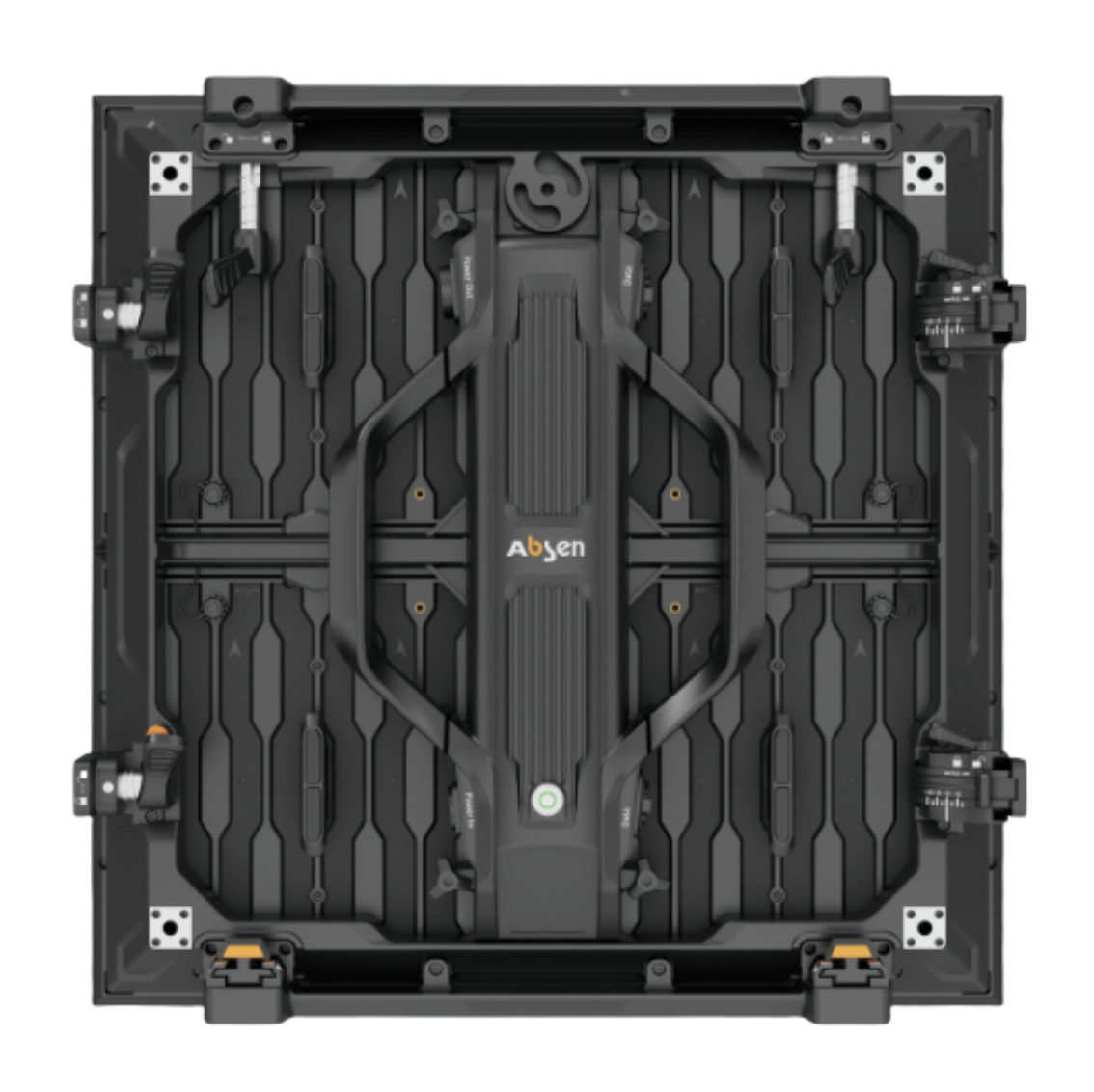

Designed specifically for seamless edge, corner, and cube configurations, the PL3.9 Pro V2 Cube panels support striking 3D LED builds. An integrated curve locking system allows convex (-7.5°) and concave (+10°) configurations. With an IP65/54 rating, the panels are engineered for reliable indoor and outdoor rental use.
Installation & Maintenance
Built for live event environments, the PL3.9 Pro V2 Cube supports fast installation using integrated locking and curving systems. Its robust construction is designed to withstand frequent handling while maintaining consistent performance.
Applications
Live events, indoor and outdoor rentals, concerts, festivals, brand activations, broadcast productions, and creative cube or 3D LED installations.
