| Pixel Pitch | 4.8 mm |
| Brightness | 4500 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 104 x 208 px |
| Panel Dimensions (W x H x D) | 500 x 1000 x 78 mm |
| Viewing Angle (H / V) | 140 / 120 |
| Panel Weight | 14 kg |
| IP Rating (Front / Rear) | 65 / 54 |
| Power Consumption (Max / Avg) | 700 / 230 m² |
Absen PL4.8 Pro XL (4.8mm)
Description

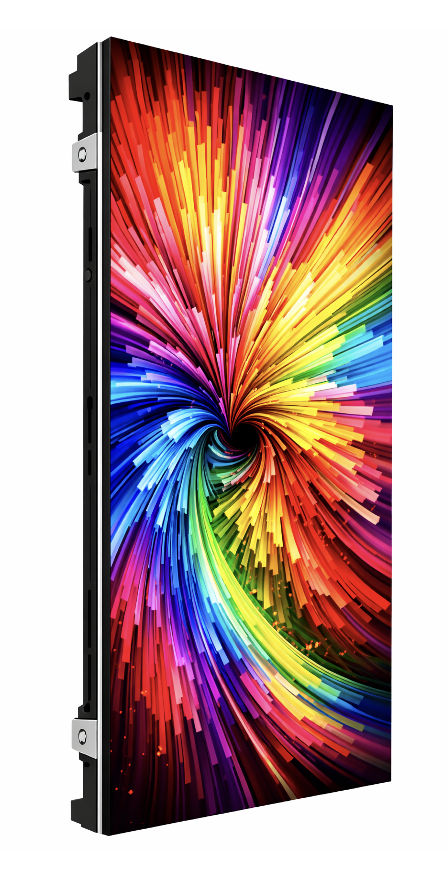

Absen PL4.8 Pro XL LED Display
The Absen PL4.8 Pro XL is a high-resolution indoor and outdoor rental LED panel designed for live events and large-scale screen builds. Featuring an XL-format 500 × 1000 mm chassis, it combines ultra-high brightness, strong contrast, and efficient installation for demanding event environments.
Visual Performance
With a 4.8 mm pixel pitch, the PL4.8 Pro XL delivers clear, high-impact visuals ideal for mid-to-long viewing distances. Ultra-high brightness of up to 4,500 nits and a 7,000:1 contrast ratio ensure excellent visibility and image clarity in both indoor and outdoor conditions.
Technology
Absen Common Cathode technology with black-faced SMD LEDs provides precise power control, delivering up to 20% lower heat generation and up to 20% higher brightness*. Advanced LED processing ensures stable performance, consistent colour reproduction, and smooth image output across large LED screens.
Design & Durability
The XL 500 × 1000 mm panel format reduces the number of panels required for large builds, enabling faster installation and cleaner screen layouts. Constructed from die-cast aluminium, the PL4.8 Pro XL is lightweight yet robust for rental use. With an IP65/54 rating, it is engineered for reliable indoor and outdoor operation.
Installation & Maintenance

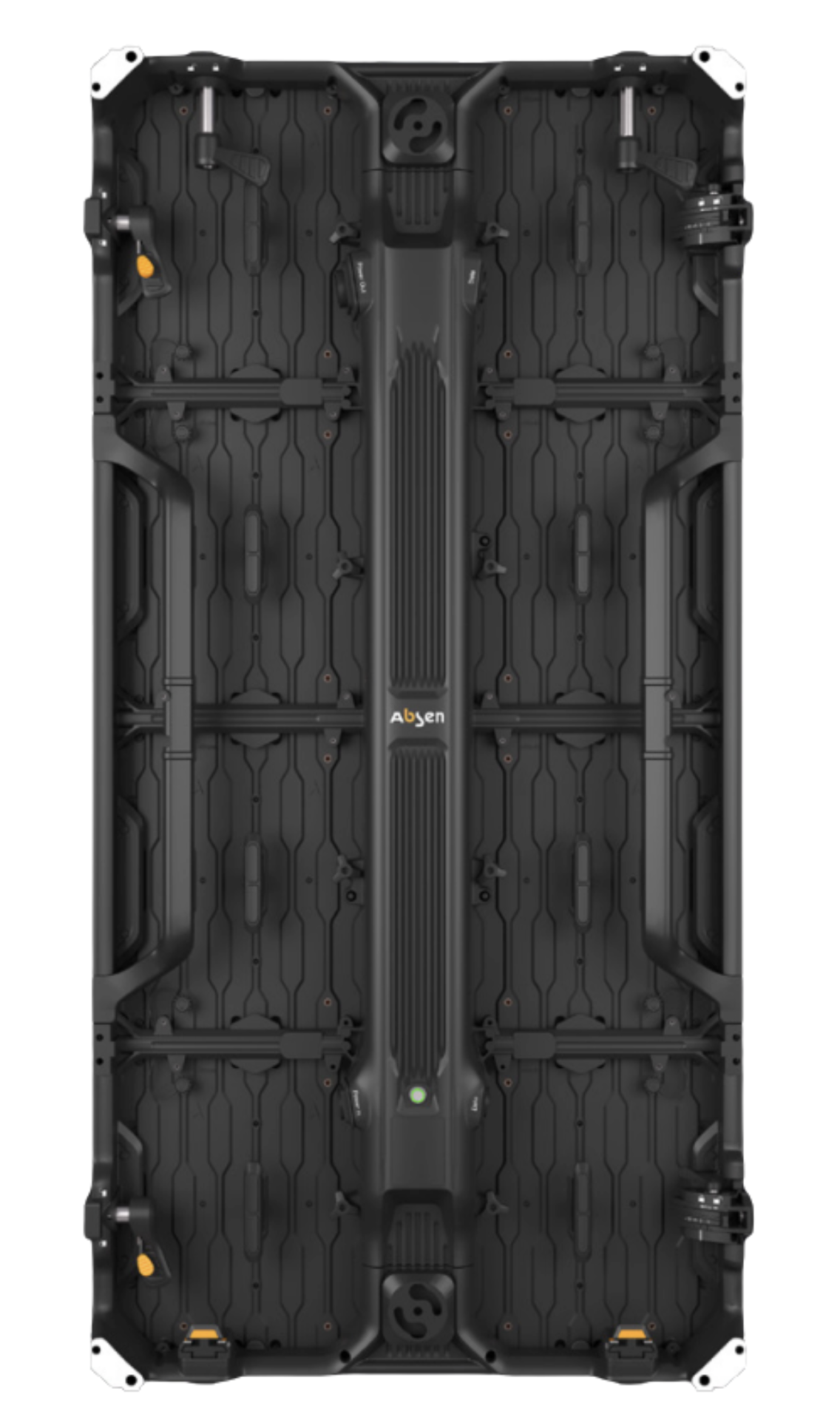

Designed for high-turnaround event environments, the PL4.8 Pro XL supports fast rigging and stacking installations. Full front and rear access allows straightforward module maintenance, with rear access to power and control components for efficient servicing.
Applications
Large-scale indoor and outdoor LED screens for live events and touring. Concerts, festivals, broadcast productions, exhibitions, and high-impact corporate staging.
