| Pixel Pitch | 2.8 mm |
| Brightness | 1000 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 176 x 176px |
| Panel Dimensions (W x H x D) | 496 x 496 x 55 mm |
| Viewing Angle (H / V) | 160 / 160 |
| Panel Weight | 9.5 kg |
| IP Rating (Front / Rear) | 40 / 21 |
| Power Consumption (Max / Avg) | 480 / 160 m² |
Aluvision Hi-LED 55+ P2.8 (2.8mm)
Description
Hi-LED 55+ P2.8 LED Display

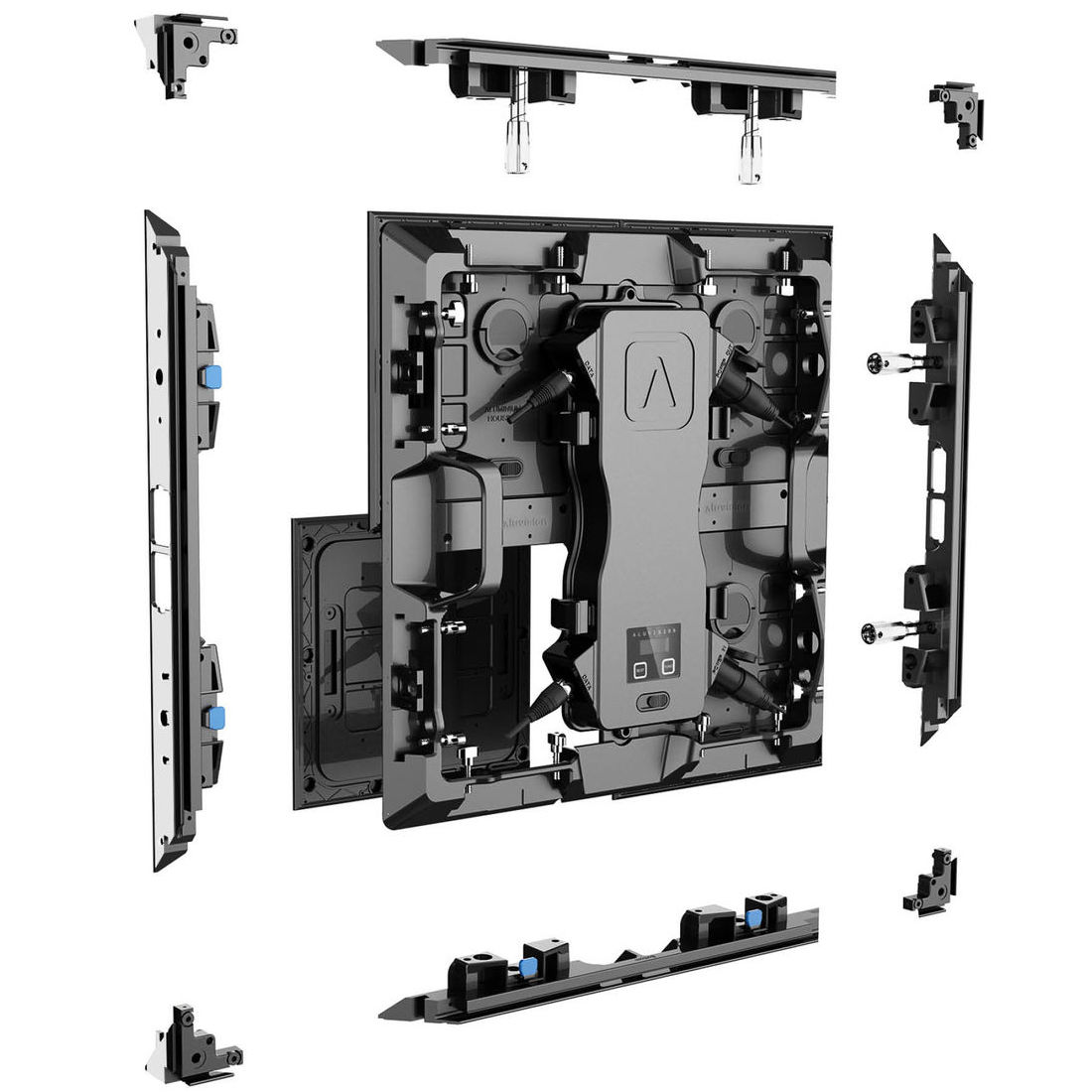

The Hi-LED Pro 55+ P2.8 is a modular indoor LED solution designed for fast, toolless installation and seamless integration within Aluvision frame systems. Chamfered edges enable flat, corner, and cube configurations using a single, unified platform.
Visual Performance
A 2.8 mm pixel pitch delivers sharp, high-impact visuals suited to close-viewing environments, with consistent brightness and colour across the entire display.
Technology
Novastar LED processing provides stable signal control and accurate image reproduction, while precision alignment ensures seamless visual continuity between panels.
Design & Durability
The slim 496 × 496 × 55 mm chassis supports wall, floor, ceiling, flown, and curved constructions (5°, 7.5°, 10°). Corner and cube builds are achieved by combining 55+ panels with standard Hi-LED Pro 55 P2.8 tiles.
Installation & Maintenance
Toolless Quick Lock fixing and magnetic alignment enable fast installation. Full front and rear access allows simple servicing of LED modules and power components.
Applications
Exhibitions, trade shows, corporate events, and creative indoor LED installations.
