| Pixel Pitch | 2.8 mm |
| Brightness | 1000 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 274 x 176px |
| Panel Dimensions (W x H x D) | 772 x 496 x 55 mm |
| Viewing Angle (H / V) | 120 / 120 |
| Panel Weight | 14 kg |
| IP Rating (Front / Rear) | 40 / 21 |
| Power Consumption (Max / Avg) | 480 / 160 m² |
Aluvision Hi-LED 55 R1476 Concave P2.8 (2.8mm)
Description

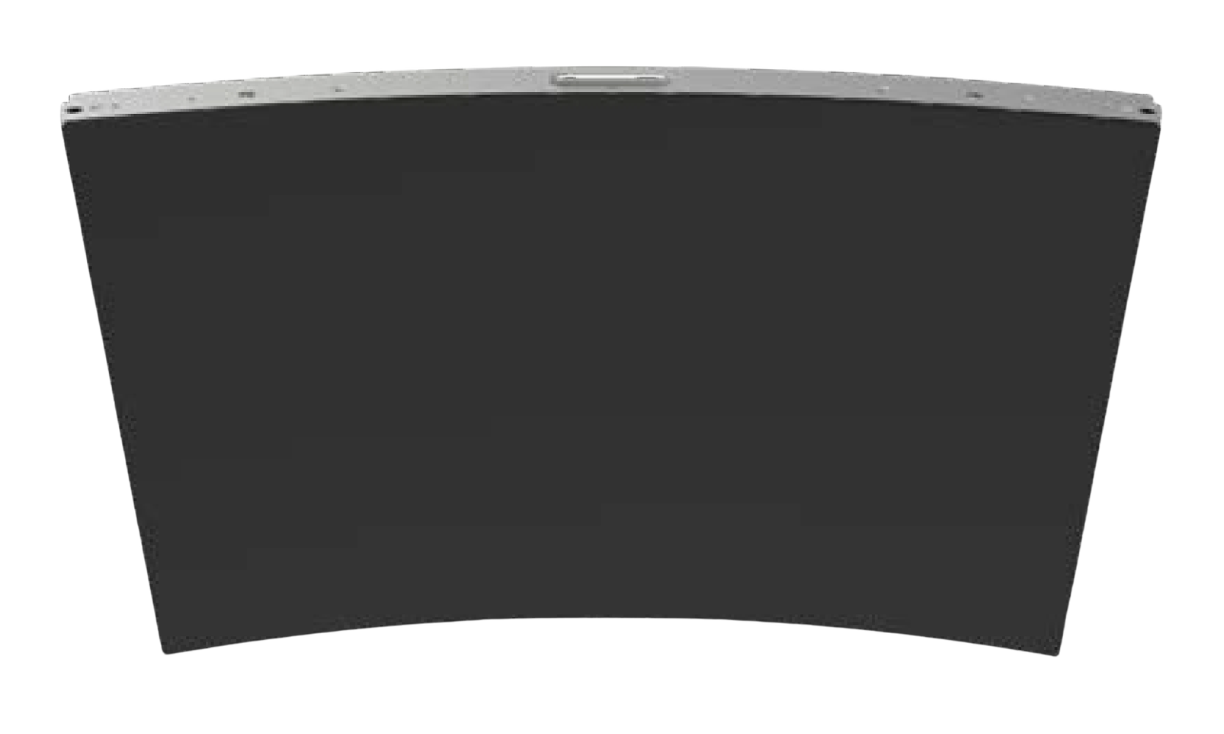

Aluvision Hi-LED 55 R1476 Concave P2.8 LED Display
The Hi-LED 55 R1476 Concave Panel P2.8 is a pre-formed indoor LED tile designed to create smooth, seamless large-radius concave curves within the Aluvision modular system. Fully compatible with flat, floor, and corner modules, it is ideal for immersive curved LED walls, tunnels, and architectural feature displays.
Visual Performance
A 2.8 mm pixel pitch delivers sharp, detailed visuals for close-viewing applications. With 1000 nits brightness, wide viewing angles, and a 3840 Hz refresh rate, the panel provides consistent, flicker-free image quality across large concave surfaces.
Technology
Powered by Novastar LED processing, the panel ensures stable signal control, accurate colour reproduction, and seamless visual continuity across curved installations.
Design & Durability
The slim cast-aluminium chassis measures 772 × 496 × 55 mm and weighs approximately 14 kg. Magnetic alignment and positioning pins enable precise, flush joins, while the robust, reusable construction supports repeated installations. Each panel forms one-twelfth of a full circular curve, allowing smooth, large-radius concave LED build.
Installation & Maintenance
Toolless quick locks, ergonomic handles, and an interchangeable power box enable fast build and strike. Full front and rear access allows straightforward servicing and maintenance.
Applications
Exhibitions, trade shows, brand activations, corporate environments, and creative indoor LED installations requiring smooth, large-radius concave curves.
