| Pixel Pitch | 2.8 mm |
| Brightness | 1000 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 244 x 176px |
| Panel Dimensions (W x H x D) | 689 x 496 x 55 mm |
| Viewing Angle (H / V) | 120 / 120 |
| Panel Weight | 14 kg |
| IP Rating (Front / Rear) | 40 / 21 |
| Power Consumption (Max / Avg) | 480 / 160 m² |
Aluvision Hi-LED 55 R437 Concave P2.8 (2.8mm)
Description

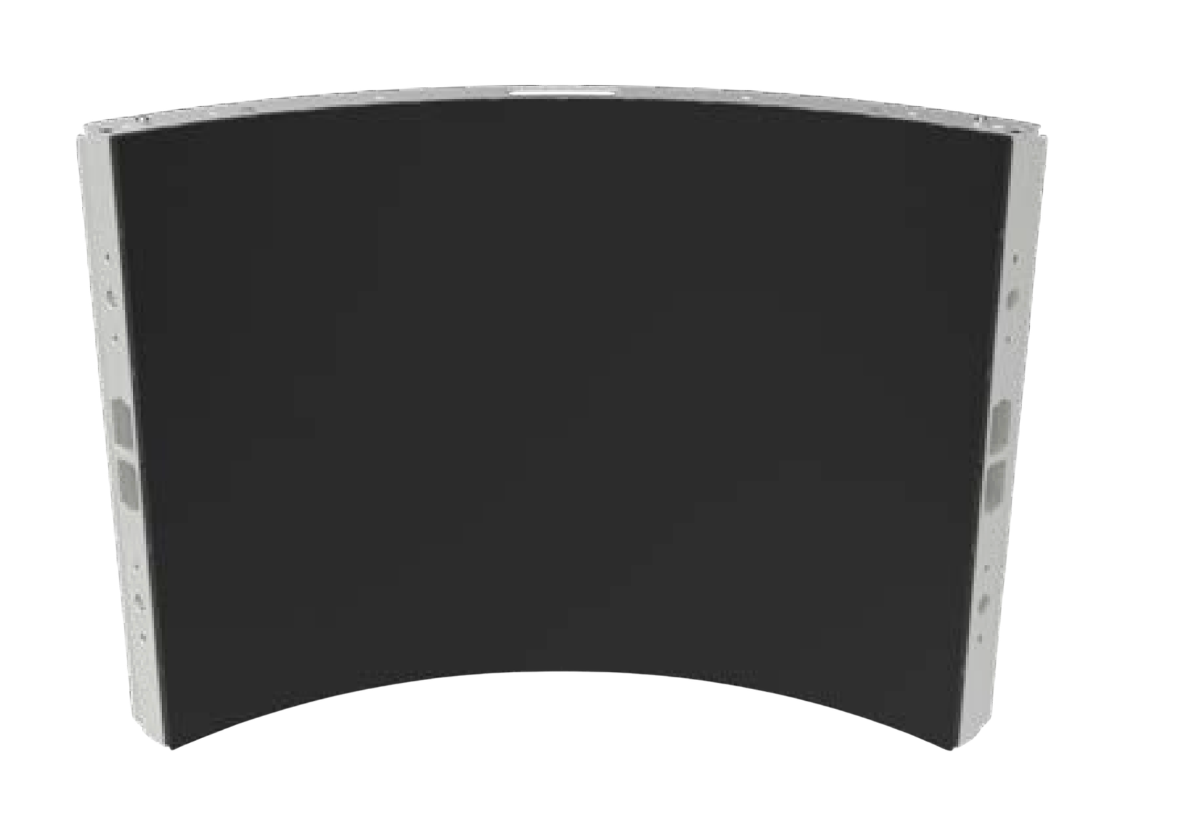

Aluvision Hi-LED 55 R437 Concave P2.8 LED Display
The Hi-LED 55 R437 Concave Panel P2.8 is a pre-formed indoor LED tile designed to create smooth, seamless concave curves within the Aluvision modular system. Fully compatible with flat, floor, and corner modules, it is ideal for immersive curved signage, tunnels, and inward-curving LED walls.
Visual Performance
A 2.8 mm pixel pitch delivers sharp, detailed visuals for close-viewing applications. With 1000 nits brightness, wide viewing angles, and a 3840 Hz refresh rate, the panel provides consistent, flicker-free image quality across concave surfaces.
Technology
Driven by Novastar LED processing, the panel ensures stable signal control, accurate colour reproduction, and seamless image continuity across curved installations.
Design & Durability
The slim cast-aluminium chassis measures 689 × 496 × 55 mm and weighs approximately 14 kg. Magnetic alignment and positioning pins enable precise, flush joins, while the robust, reusable design supports repeated installations. Each panel forms a quarter-circle concave segment.
Installation & Maintenance
Toolless quick locks, ergonomic handles, and an interchangeable power box enable fast build and strike. Full front and rear access allows straightforward servicing and maintenance.
Applications
Exhibitions, trade shows, brand activations, corporate environments, and creative indoor LED installations requiring smooth concave curves.
