| Pixel Pitch | 2.8 mm |
| Brightness | 1000 nits |
| Refresh Rate | 3840 Hz |
| Pixel Matrix Per Panel | 274 x 176px |
| Panel Dimensions (W x H x D) | 772 x 496 x 55 mm |
| Viewing Angle (H / V) | 120 / 120 |
| Panel Weight | 14 kg |
| IP Rating (Front / Rear) | 40 / 21 |
| Power Consumption (Max / Avg) | 480 / 160 m² |
Aluvision Hi-LED 55 R437 Convex P2.8 (2.8mm)
Description

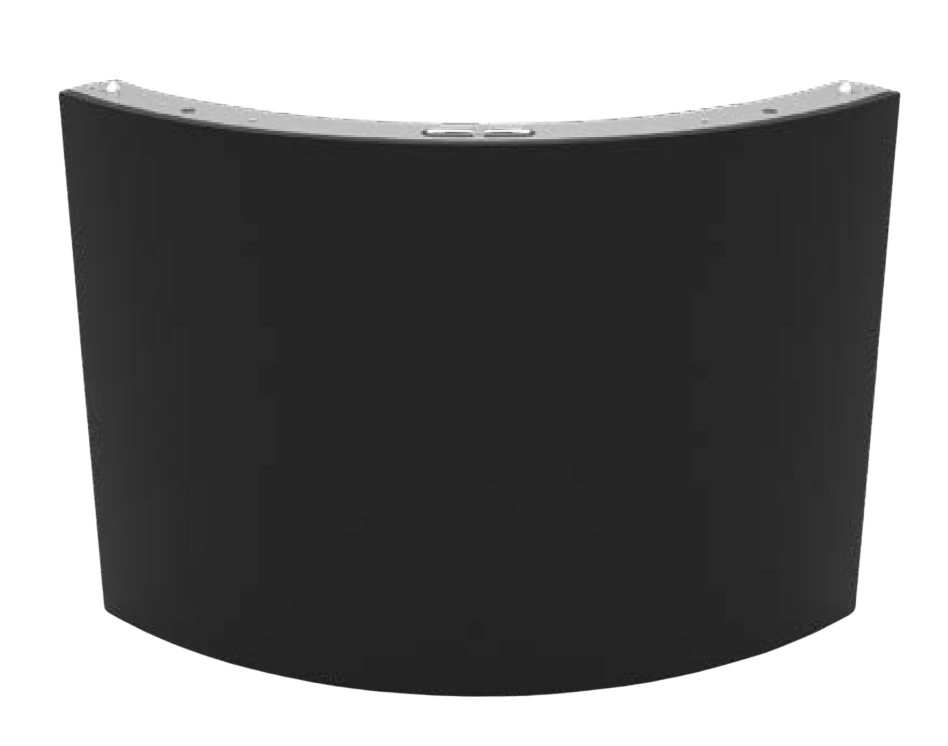

Aluvision Hi-LED 55 R437 Convex P2.8 LED Display
The Hi-LED 55 R437 Convex Panel P2.8 is a pre-formed indoor LED tile designed to create smooth, seamless convex curves within the Aluvision modular system. Fully compatible with flat, floor, and corner modules, it is ideal for curved signage, archways, tunnels, and standalone curved LED walls.
Visual Performance
A 2.8 mm pixel pitch delivers sharp, detailed visuals for close viewing. With 1000 nits brightness, a 120° viewing angle, and a 3840 Hz refresh rate, the panel provides consistent, flicker-free image quality across curved surfaces.
Technology
Powered by Novastar LED processing, the panel ensures stable signal control, accurate colour reproduction, and seamless visual continuity across the curve.
Design & Durability
The slim cast-aluminium chassis measures 772 × 496 × 55 mm and weighs 14 kg. Magnetic alignment and positioning pins enable precise, flush joins, while the robust, reusable design supports repeated installations. Each panel forms a quarter-circle convex segment.
Installation & Maintenance
Tool less quick locks, ergonomic handles, and an interchangeable power box enable fast build and strike. Full front and rear access allows straightforward servicing.
Applications
Exhibitions, trade shows, brand activations, corporate environments, and creative indoor LED installations requiring smooth convex curves.
