Martin Audio CDD5W Speaker

Description

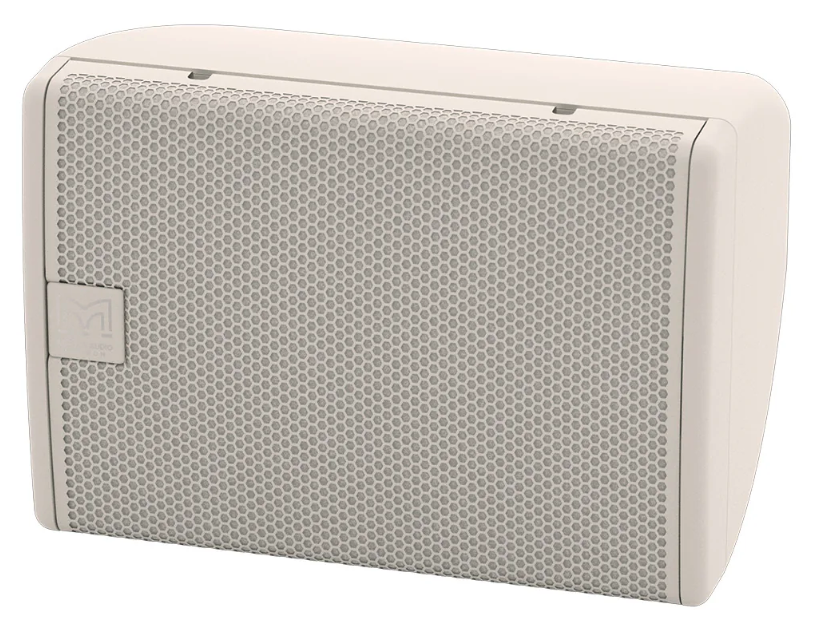

Martin Audio CDD5W Speaker

The Martin Audio CDD5W is an ultra-compact passive two-way loudspeaker designed for discreet sound reinforcement in installation and AV environments. Its compact form factor and flexible mounting options allow it to integrate easily into a wide range of professional audio setups.

Audio Performance

The CDD5W features a 5.25-inch low-frequency driver and a 0.75-inch high-frequency driver using Martin Audio’s Coaxial Differential Dispersion technology, delivering clear and consistent sound coverage. The system provides a frequency response of approximately 100 Hz to 20 kHz with up to 116 dB peak SPL and an 8-ohm nominal impedance.

Design & Installation

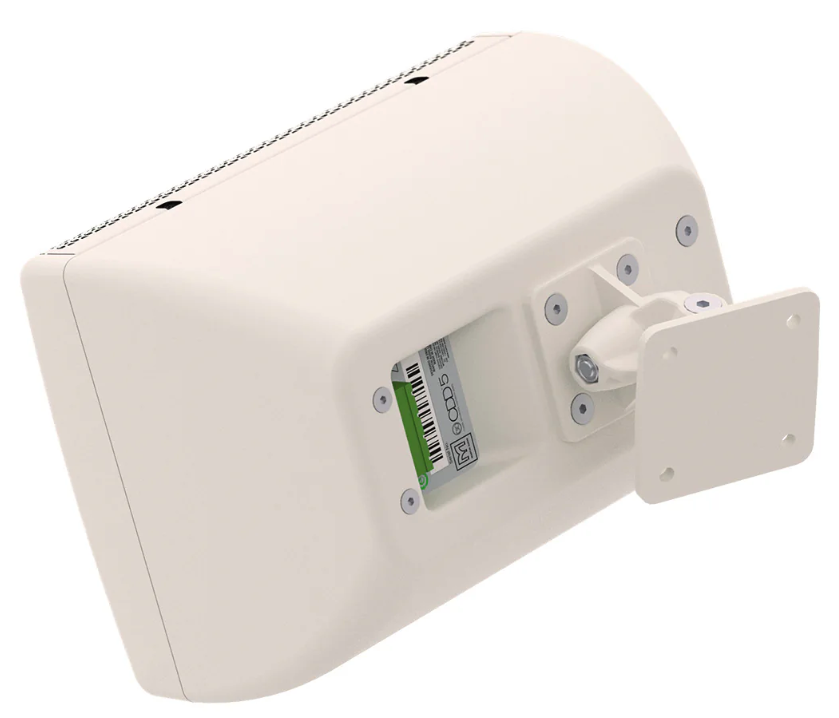

The speaker is housed in a compact ABS moulded enclosure finished in white and protected by a perforated steel grille. A user-rotatable coaxial driver allows horizontal or vertical orientation, while the supplied mounting bracket and M5 mounting inserts support flexible wall or ceiling installation.
