| Model | NovaStar MCTRL 4K |
| Inputs | 1 x DP 1.2, 1 x HDMI 2.0, 2 x Dual-Link DVI |
| Outputs | 16 x Gigabit Ethernet Ports (RJ45), 4 x 10G Optical |
| Max Load Capacity | Up to 8.8 million pixels |
| Max Input Resolution | 4096 x 2160 @ 60 Hz |
| Custom Resolutions | Supported up to 7680 x 1080 @ 60Hz, 1080 x 7680 @ 60Hz |
| Ethernet Output Capacity | Up to ~650,000 pixels per port (8-bit) |
| Weight | 4.6 kg |

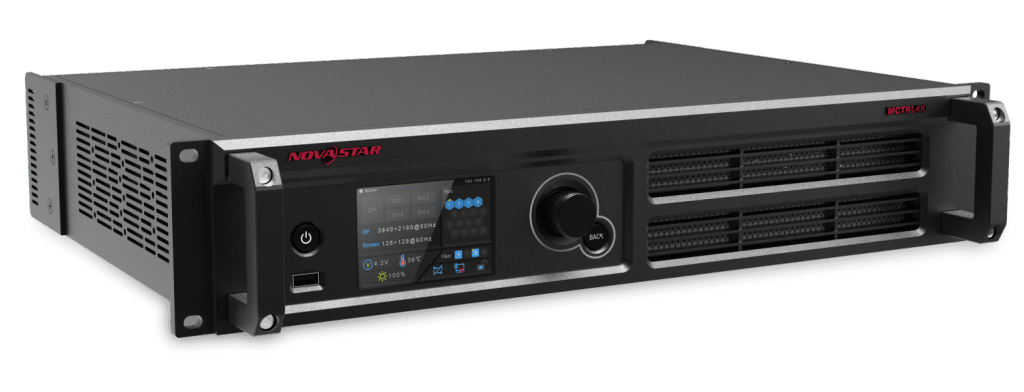

NovaStar MCTRL 4K
Description
Overview
The NovaStar MCTRL4K is a high-performance LED display controller designed for advanced video processing and precise LED screen control. Supporting high-bandwidth inputs such as HDMI 2.0, DisplayPort and Dual-Link DVI, it delivers stable, high-quality output for large-scale LED display applications.
Performance & Connectivity
Capable of driving up to 8 million pixels with output dimensions of up to 7680 pixels in width or height, the MCTRL4K is well suited to ultra-wide and high-resolution LED screens. With 16 Gigabit Ethernet outputs and 10G optical connectivity, it provides the capacity and flexibility required for complex medium to large LED display systems.
Smart Setup & Control
Advanced image processing features support smooth visuals, low-latency performance and consistent image quality across the display. Built-in pixel-level brightness and colour calibration helps maintain uniform results, while USB and network control options allow straightforward integration into professional workflows.
Built for Professionals
Designed for demanding environments, the MCTRL4K combines robust hardware with professional-grade performance, making it ideal for live events, broadcast environments, control rooms and permanent LED installations.
