| Model | Novastar VX1000 All-in-One Controller |
| Inputs | 1 × HDMI 1.4 (IN & loop), 1 × HDMI 1.4, 1 × DVI (IN & loop), 1 × DVI, 1 × 3G-SDI (IN & loop), 1 × 10G optical (OPT 1) |
| Outputs | 10 x Gigabit Ethernet Ports (RJ45), 2 x Fiber outputs (OPT 1 & OPT 2) |
| Max Load Capacity | Up to 6.5 million pixels |
| Max Input Resolution | 3840 x 1080px @ 60 Hz |
| Custom Resolutions | Supported (up to 10,240 width / 8,192 height) |
| Ethernet Output Capacity | Up to ~650,000 pixels per port (8-bit) |
| Weight | 4 kg |
NovaStar VX1000
Description
Overview

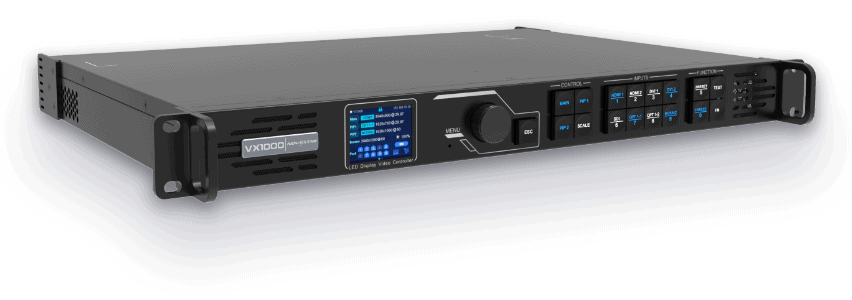

The NovaStar VX1000 is a professional all-in-one LED display controller that integrates both video processing and LED screen control into a single unit. With support for multiple video inputs and 10 Gigabit Ethernet outputs, it delivers stable, high-quality visuals and robust performance across a wide range of LED display applications.
Performance & Connectivity
Capable of driving up to 6.5 million pixels, the VX1000 handles ultra-wide and ultra-high LED screens with a maximum output up to 10,240 × 8,192 pixels. Built-in scaling, low-latency processing and multiple working modes provide flexible connectivity and smooth visual performance for medium to large LED systems.
Smart Setup & Control
With integrated video and LED control functions, the VX1000 simplifies setup and operation. It supports multiple input formats and modes, enabling quick configuration and smooth integration with control software. Built-in calibration and image-processing features help ensure consistent brightness and colour across the display.
Built for Professionals
Designed for demanding environments, the VX1000 combines rugged hardware with advanced control features, making it ideal for rental, staging, broadcast and fixed LED display installations where reliability and performance are essential.
